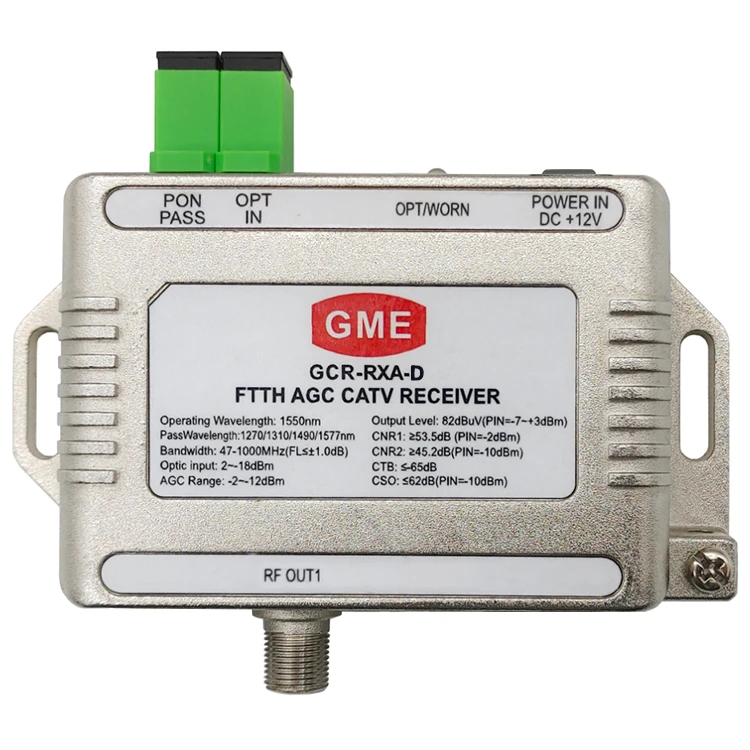

Reseptè optik se pou televizyon dijital, fib nan kay la. Machin sa a adopte gwo sansiblite optik k ap resevwa tib la. Entegrasyon aplikasyon fleksib, aplikasyon fib nan rezo kay la. Li se bati -nan CWDM, apwopriye pou yon sèl -fib trip longèdonn sistèm, CATV opere longèdonn 1550nm, pase longèdonn 1270/1310/1310/1310/1550nm, fasil konekte nan ONU574nm. EPON, GPON.XG(S)PON
Karakteristik
Spesifikasyon
|
Longèdonn CATV |
1550±10nm |
Sòti RF rezistans |
75Ω |
|
|
PON Longèdonn |
1270/1310/1490/1577nm |
Pèt Retounen Sòti a |
Mwens pase oswa egal a 14dB |
|
|
Optik Antre pouvwa |
-18-+2dBm |
Pèt retou optik |
Pi gran pase oswa egal a 55dB |
-9dBm pouvwa D 'optik, 60 chanèl PAL |
|
Gamme optik AGC |
-12--2dBm |
C/CSO |
Pi gran pase oswa egal a 55dB |
|
|
CATV Optical D' pò |
SC/APC |
C/CTB |
Pi gran pase oswa egal a 55dB |
|
|
PON optik reflete pò |
SC/PC |
MER |
Pi gran pase oswa egal a 31dB |
-15dBm pouvwa D 'optik |
|
RF konektè |
Kalite Imperial F |
Antre Voltage |
+12V |
|
|
Frekans |
47-1000MHz |
Dissipasyon pouvwa |
Mwens pase oswa egal a 2W |
|
|
Flatness |
Mwens pase oswa egal a ± 1.25dB |
Tanperati |
-10-+50 degre |
|
|
Nivo Sòti RF (nan seri AGC) |
Pi gran pase oswa egal a 80dBuV |
Dimansyon |
73 × 60 × 23 (L × W × H) mm |
|
Lis modèl
|
Modèl |
Pase longèdonn |
Reflete longèdonn |
Pase Entèfas |
RF soti koòdone |
DC-nan |
|
GCR-4RXA-F |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
4 |
F-Fi: 12V 300mA |
|
GCR-2RXA-F |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
2 |
F-Fi: 12V 300mA |
|
GCR-RXA-F |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
1 |
F-Fi: 12V 300mA |
|
GCR-4RXU-F |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
4 |
F-Fi: 12V 300mA |
|
GCR-2RXU-F |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
2 |
F-Fi: 12V 300mA |
|
GCR-RXU-F |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
1 |
F-Fi: 12V 300mA |
|
GCR-4RXA-D |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
4 |
DC-005:12V 300mA |
|
GCR-2RXA-D |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
2 |
DC-005:12V 300mA |
|
GCR-RXA-D |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
1 |
DC-005:12V 300mA |
|
GCR-4RXU-D |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
4 |
DC-005:12V 300mA |
|
GCR-2RXU-D |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
2 |
DC-005:12V 300mA |
|
GCR-RXU-D |
1550nm±10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
1 |
DC-005:12V 300mA |
