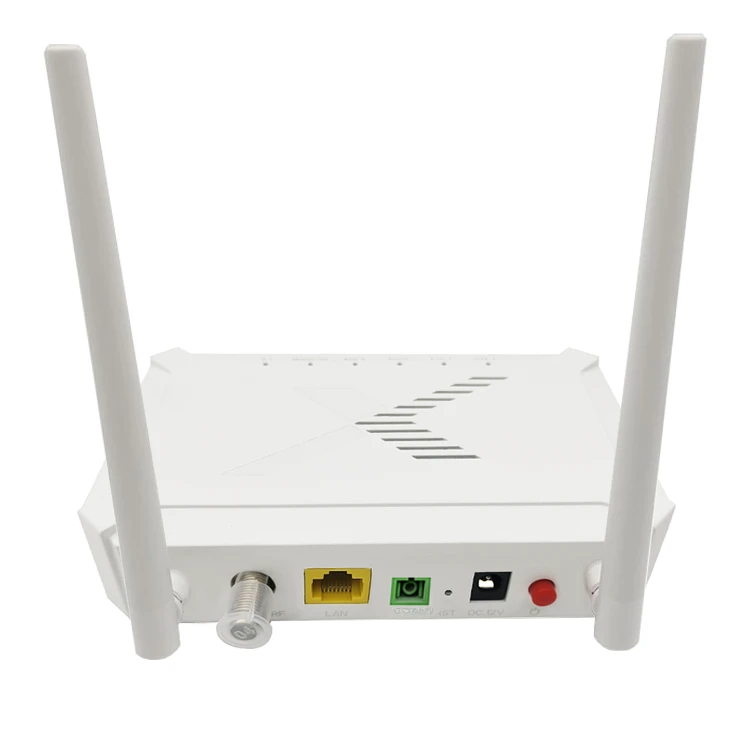

1ge wifi 4 catv

○Paramèt Materyèl

Kondisyon opere

l opere temp: -10 ~ +55 degre

l opere imidite: 5 ~ 95% (ki pa kondansasyon)

Estoke kondisyon

l estoke temp: -40 ~ +70 degre

l Sere imidite: 5 ~ 95% (ki pa kondansasyon)

Adaptè pouvwa

DC 12V, 1A, ekstèn adaptè pouvwa AC-DC

Ekipman pou pouvwa

Mwens pase oswa egal a 12W

Entèfas

1ge+wifi 4+ CATV

Endikatè

Pouvwa, Pon, Los, Lan, Catv, Wifi

○Paramèt koòdone

PON koòdone

L 1 Xpon Port (Epon PX 20+ & GPON Klas B+)

L Sc Mode Single, SC/APC Connector

L TX Optical Power: 0-+4 DBM

L RX Sansiblite: -27 DBM

l Surcharge Optical Power: -3 DBM (EPON) oswa -8 DBM (GPON)

l distans transmisyon: 20km

LAN koòdone

1*GE Auto-negosyasyon RJ45 pò

CATV koòdone

l Optik k ap resevwa longèdonn: 1550 ± 10Nm

l Optical Antre Range: +2--18 DBM

l Pèt refleksyon optik: pi gran pase oswa egal a 40dB

l RF Frekans Range: 47-1000 MHz

L RF Sòti Enpedans: 75Ω

L RF Nivo Sòti ak AGC Range:

Pi gran pase oswa egal a 81 ± 2dbuv@+1--10 dbm

Pi gran pase oswa egal a 79 ± 2dbuv@ 0--11 dbm

Pi gran pase oswa egal a 77 ± 2dbuv@-1--12 dbm

Pi gran pase oswa egal a 75 ± 2dbuv@-2--13 dbm

Pi gran pase oswa egal a 73 ± 2dbuv@-3--14 dBm

Pi gran pase oswa egal a 71 ± 2dbuv@-4--15 dbm

l Mer: pi gran pase oswa egal a 32dB (-14 DBM opinyon optik)

○Fonksyon done

Pon mòd

Xpon Doub Mode, ka gen aksè a endikap EPON/GPON OLTS

Mòd lojisyèl

Routing mòd

Wifi

l konfòme ak IEEE802.11b/g/n,

l Frekans opere: 2.400-2.4835 GHz

l Sipòte mimo, to jiska 300Mbps,

l 2t2r, 2 antèn ekstèn 5dbi,

l Sipò: miltip SSID

l Chèn: 13

L Kalite Modulation: DSSS, CCK ak OFDM

L kodaj Scheme: BPSK, QPSK, 16QAM ak 64QAM

l Wifi Otantifikasyon: WEP /WAP-PSK (TKIP) /WAP 2- PSK (AES)

l Sipò: miltip SSID

Firewall

DDOS, filtraj ki baze sou ACL/ MAC/ URL .

Lays22

802 . 1d & 802.1ad pon, 802.1p cos, 802.1q vlan.

Lays3

IPv4/IPV6, DHCP Kliyan/sèvè, PPPoE, NAT, DMZ, DDNS .

Multikast

IGMP V1/V2/V3, IGMP snooping

Garanti

Flow & Tanpèt Kontwòl, Deteksyon Loop

O&M

Entènèt/telnet/oam/omci/tr 069.
